LED Recessed Downlights
#1081 – DPS-4-5CCT – 4″ Slim LED Downlight
| Model No: | #1081 – DPS-4-5CCT |
| Wattage (W): | 9W |
| Voltage (V): | 120VAC |
| Rated Lumens (lm): | 700 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Base: | Hardwire (E26 Optional with Accessory Kit) |
| 5CCT Color Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Housing Material: | Aluminum |
| Trim Colour Included: | White |
| Trim Mounting: | Magnetic – Interchangeable |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 77.7 lm/W |
| Beam Angle: | 110° |
| Mounting: | 4″ Octagonal J-BOX or 4″ Recessed Housing with Optional Accessory |
| Enrironmental Rating: | Wet Location, Type IC Rated |
| Safety Certification: | cETLus |
| Dimensions: | 4-7/8″D x 1-1/8″H |
| Carton Quantity: | 24 per Carton |
| Warranty: | 5 Years |
#1082 – DPS-4-BK-TRIM – 4″ Black Trim
#1083 – DPS-4-BN-TRIM – 4″ Brushed Nickel Trim
#1084 – DPS-ACC – Accessory Kit for 4″ Recessed Housing Mounting Option
#1201 – DPM-4-5CCT – 4″ Slim LED Downlight
| Model No: | #1201- DPM-4-5CCT |
| Wattage (W): | 9W |
| Voltage (V): | 120VAC |
| Rated Lumens (lm): | 650 lm |
| L70 Rated Life (Hrs): | 35,000 Hrs |
| Base: | Hardwire (E26 Optional with Accessory Kit) |
| 5CCT Color Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Housing Material: | Aluminum |
| Trim Colour Included: | White |
| Trim Mounting: | Magnetic – Interchangeable |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 77.7 lm/W |
| Beam Angle: | 38° |
| Mounting: | 4″ Octagonal J-Box |
| Enrironmental Rating: | Wet Location, Type IC Rated w/ J-Box |
| Safety Certification: | cETLus |
| Dimensions: | 4-7/8″D x 1-1/8″H |
| Carton Quantity: | 24 per Carton |
| Warranty: | 5 Years |
| Optional Accessories: | #1202 – DPM-4 BK Trim (Black Trim) #1203 – DPM-4 BN Trim (Brushed Nickel Trim) |
#1100 – DP4-5CCT – 5CCT 4″ LED Panel Ceiling Light
#1100 – DP4-5CCT – 5CCT 4″ LED Panel Ceiling Light| Model No: | #1100 – DP4-5CCT |
| Wattage (W): | 9W |
| Trim Colour: | White |
| Colour Temperature: | 5CCT – 2700K/3000K/3500K/4000K/5000K |
| Voltage: | 120VAC |
| Light Output: | 650 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated, Wet Location |
| CRI: | 80 |
| Beam Angle: | 120° |
| Operating Temperature: | -20° to 45° |
| Environmental Rating: | Wet Location, Type IC Rated, Airtight |
| Hole Saw Cut-Out: | 4-1/4″ Diameter |
| Carton Quantity: | 24 per Carton |
| Warranty: | 3 Years |
| IES Photometric File: | DP4-3CCT IES File |
#1042 – DP4-BK Trim
| Model No: | #1042 – DP4-BK TRIM |
| Description: | 4″ Black Trim for: |

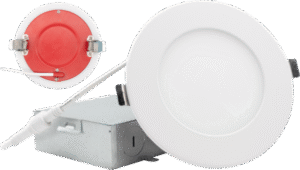

#1123 – LED DP4-FR-5CCT (4-Inch Fire-Rated Downlight)
#1123 – LED DP4-FR-5CCT (4-Inch Fire-Rated Downlight)| Model No: | #1123 – LED DP4-FR-5CCT |
| Wattage (W): | 12W |
| Trim Colour: | White |
| Selectable Colour Temperatures: | 5CCT – 2700K/3000K/3500K/4000K/5000K |
| Voltage: | 120VAC |
| Light Output: | 800 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| 2-FR Fire Rating Compliance: | UL 263, ASTM E119, CAN ULC S101 |
| Certifications: | cETLus, 2-Hour Fire-Rated, Type IC, Wet Location |
| CRI: | 80 |
| Beam Angle: | 110° |
| Operating Temperature: | -20° to 45° |
| Environmental Rating: | Wet Location, Type IC Rated |
| Hole Saw Cut-Out: | 4-1/4″ Diameter |
| Carton Quantity: | 18 per Carton |
| Warranty: | 5 Years |
#1099 – DP6-30K – 6″ LED Panel Ceiling Light
#1099 – DP6-30K – 6″ LED Panel Ceiling Light| Model No: | #1099 – DP6-30K |
| Wattage (W): | 12W |
| Trim Colour: | White |
| Colour Temperature: | 3000K |
| Voltage: | 120VAC |
| Light Output: | 900 lm |
| Rated Life: | 35,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus |
| CRI: | 80 |
| Beam Angle: | 110° |
| Operating Temperature: | -20° to 40° |
| Environmental Rating: | Wet Location, Type IC Rated |
| Hole Saw Cut-Out: | 6-1/16″ Diameter |
| Carton Quantity: | 18 per Carton |
| Warranty: | 3 Years |
| IES Photometric File: | DP6-30K IES File |
#1043 – DP6-BK Trim
#1043 – DP6-BK Trim| Model No: | #1043 – DP6-BK TRIM |
| Description: | 6″ Black Trim for: |
#1124 – LED DP6-FR-5CCT (6-Inch Fire-Rated Downlight)
| Model No: | #1124 – LED DP6-FR-5CCT |
| Wattage (W): | 15W |
| Trim Colour: | White |
| Selectable Colour Temperatures: | 5CCT – 2700K/3000K/3500K/4000K/5000K |
| Voltage: | 120VAC |
| Light Output: | 1200 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| 2-FR Fire Rating Compliance: | UL 263, ASTM E119, CAN ULC S101 |
| Certifications: | cETLus, 2-Hour Fire-Rated, Type IC, Wet Location |
| CRI: | 80 |
| Beam Angle: | 110° |
| Operating Temperature: | -20° to 45° |
| Environmental Rating: | Wet Location, Type IC Rated |
| Hole Saw Cut-Out: | 6-1/4″ Diameter |
| Carton Quantity: | 18 per Carton |
| Warranty: | 5 Years |
#1141 – TL4-5CCT-BK-12W (Colour Selectable)
#1141 – TL4-5CCT-BK-12W (Colour Selectable)| Model No: | #1141 – TL4-5CCT-BK-12W |
| Wattage (W): | 12W |
| Trim Colour: | Black |
| Gimbal Head Type: | Floating Gimbal 90° Tilt 360° Rotation |
| Colour Temperature: | 2700K /3000K / 3500K / 4000K / 5000K |
| Voltage: | 120VAC |
| Light Output: | 900 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated |
| CRI: | ≥ 80 |
| Beam Angle: | 40° |
| Environmental Rating: | Wet location, Type IC Rated |
| Height: | 1.38″ / 36 mm |
| Diameter: | 4.88″ / 125 mm |
| Driver Height: | 1.38″ / 36 mm |
| Hole Saw Cut-Out: | 4″ Diameter |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |
#1140 – TL4-5CCT-WH-12W (Colour Selectable)
#1140 – TL4-5CCT-WH-12W (Colour Selectable)| Model No: | #1140 – TL4-5CCT-WH-12W |
| Wattage (W): | 12W |
| Trim Colour: | White |
| Gimbal Head Type: | Floating Gimbal 90° Tilt 360° Rotation |
| Colour Temperature: | 2700K /3000K / 3500K / 4000K / 5000K |
| Voltage: | 120VAC |
| Light Output: | 900 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated |
| CRI: | ≥ 80 |
| Beam Angle: | 40° |
| Environmental Rating: | Wet location, Type IC Rated |
| Height: | 1.38″ / 36 mm |
| Diameter: | 4.88″ / 125 mm |
| Driver Height: | 1.38″ / 36 mm |
| Hole Saw Cut-Out: | 4″ Diameter |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |
#1089 – DGIM-4-3CCT-BK (Colour Selectable)
#1089 – DGIM-4-3CCT-BK (Colour Selectable)| Model No: | #1089 DGIM-4-3CCT-BK |
| Wattage (W): | 9W |
| Trim Colour: | Black |
| Gimbal Head: | Yes |
| Colour Temperature: | 3000K / 4000K / 5000K |
| Voltage: | 120VAC |
| Light Output: | 600 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated, Airtight |
| CRI: | > 80 |
| Beam Angle: | 40° |
| Environmental Rating: | Damp Location, Type IC Rated |
| Height: | 1-9/16″ / 40 mm |
| Diameter: | 5-3/16″ / 131 mm |
| Driver Height: | 1-3/8″ / 35 mm |
| Hole Saw Cut-Out: | 3.5″ – 4″ Diameter |
| Carton Quantity: | 30 per Carton |
| Warranty: | 5 Years |
| IES Photometric Files: | 3000K 4000K 5000K |
#1155 – DGIM-4-5CCT-BK (Colour Selectable)
#1155 – DGIM-4-5CCT-BK (Colour Selectable)| Model No: | #1155 DGIM-4-5CCT-BK |
| Wattage (W): | 9W |
| Trim Colour: | Black |
| Gimbal Head: | Yes |
| Colour Temperature: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Voltage: | 120VAC |
| Light Output: | 800 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated, Airtight |
| CRI: | > 80 |
| Beam Angle: | 40° |
| Environmental Rating: | Damp Location, Type IC Rated, Airtight |
| Height: | 1-9/16″ / 40 mm |
| Diameter: | 5-3/16″ / 132 mm |
| Driver Dimensions: | 4-1/8″ x 2-11/16″ x 1-3/8″ |
| Hole Saw Cut-Out: | 3.5″ – 4″ Diameter |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |
| Optional Accessory: | #1079 – RIP-35 – 3.5″ Rough-in Plate OR #885 – RIP-4 – 4″ Rough-in Plate |
#1154 – DGIM-4-5CCT-WH (Colour Selectable)
#1154 – DGIM-4-5CCT-WH (Colour Selectable)| Model No: | #1154 DGIM-4-5CCT-WH |
| Wattage (W): | 9W |
| Trim Colour: | White |
| Gimbal Head: | Yes |
| Colour Temperature: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Voltage: | 120VAC |
| Light Output: | 800 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated, Airtight |
| CRI: | > 80 |
| Beam Angle: | 40° |
| Environmental Rating: | Damp Location, Type IC Rated |
| Height: | 1-9/16″ / 40 mm |
| Diameter: | 5-3/16″ / 132 mm |
| Driver Dimensions: | 4-1/8″ x 2-11/16″ x 1-3/8″ |
| Hole Saw Cut-Out: | 3.5″ – 4″ Diameter |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |
| Optional Accessory: | #1079 – RIP-35 – 3.5″ Rough-in Plate OR #885 – RIP-4 – 4″ Rough-in Plate |

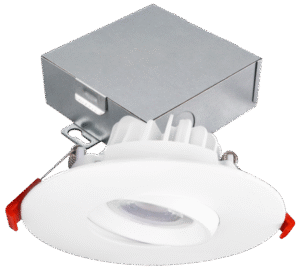

#1038 – LED DG-4-345K (Colour Selectable)
#1038 – LED DG-4-345K (Colour Selectable)| Model No: | #1038 DG-4-345K-WH |
| Wattage (W): | 12W |
| Trim Colour: | White or Black |
| Gimbal Head: | Yes |
| Colour Temperature: | 3000K / 4000K / 5000K |
| Voltage: | 120VAC |
| Light Output: | 800 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus |
| CRI: | ≥ 90 |
| Beam Angle: | 40° |
| Environmental Rating: | Wet Location, Type IC Rated |
| Height: | 2-1/8″ / 54 mm |
| Diameter: | 4-7/8″ / 124 mm |
| Driver Height: | 1-3/8″ / 36 mm |
| Hole Saw Cut-Out: | 3-3/4″ Diameter |
| Carton Quantity: | 18 per Carton |
| Warranty: | 5 Years |
#1102 – RG-4-30K-WH
#1102 – RG-4-30K-WH| Model No: | #1102 RG-4-30K-WH |
| Wattage (W): | 12W |
| Trim Colour: | White |
| Gimbal Head: | Yes |
| Colour Temperature: | 3000K |
| Voltage: | 120VAC |
| Light Output: | 900 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated |
| CRI: | ≥ 90 |
| Beam Angle: | 40° |
| Environmental Rating: | Wet Location, Type IC Rated |
| Height: | 3-3/8″ / 8.5 cm |
| Diameter: | 4-11/32″ / 11 cm |
| Driver Height: | 1-3/8″ / 3.6 cm |
| Hole Saw Cut-Out: | 3-3/4″ Diameter |
| Carton Quantity: | 18 per Carton |
| Warranty: | 5 Years |
| Optional Accessory: | #1079 – RIP-35 – 3.5″ Rough-in Plate |

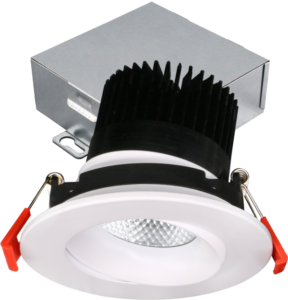

#1041 / #1040 – RG-4-345K (Colour Selectable)
| Model No: | #1041 RG-4-345K-WH #1040 RG-4-345K-BK |
| Wattage (W): | 12W |
| Trim Colour: | White or Black |
| Gimbal Head: | Yes |
| Colour Temperature: | 3000K / 4000K / 5000K |
| Voltage: | 120VAC |
| Light Output: | 705 lm / 845 lm / 840 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated |
| CRI: | ≥ 90 |
| Beam Angle: | 40° |
| Environmental Rating: | Wet Location, Type IC Rated |
| Height: | 3-3/8″ / 8.5 cm |
| Diameter: | 4-11/32″ / 11 cm |
| Driver Height: | 1-3/8″ / 3.6 cm |
| Hole Saw Cut-Out: | 3-3/4″ Diameter |
| Carton Quantity: | 18 per Carton |
| Warranty: | 5 Years |
| Optional Accessory: | #1079 – RIP-35 – 3.5″ Rough-in Plate |
| IES Photometric Files: | 3000K 4000K 5000K |
#1125 – RG-4-5CCT-WH (Colour Selectable)
#1125 – RG-4-5CCT-WH (Colour Selectable)| Model No: | #1125 RG-4-5CCT-WH |
| Wattage (W): | 12W |
| Trim Colour: | White |
| Gimbal Head: | Yes |
| Colour Temperature: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Voltage: | 120VAC |
| Light Output: | 800 lm |
| Rated Life: | 50,000 Hrs. |
| Base Type: | Hardwire |
| Dimmable: | Yes |
| Certifications: | cETLus, Type IC Rated |
| CRI: | 90 |
| Beam Angle: | 40° |
| Environmental Rating: | Wet Location, Type IC Rated |
| Diameter: | 4-3/8″ / 11.1 cm |
| Height: | 3-5/8″ / 9.2 cm |
| Driver Dimensions: | 4-1/8″ L x 3-5/16″ W x 1-7/16″ H |
| Hole Saw Cut-Out: | 3-3/4″/ 95 mm |
| Carton Quantity: | 18 per Carton |
| Warranty: | 5 Years |
| Optional Accessory: | #1079 – RIP-35 – 3.5″ Rough-in Plate |
#1079 – RIP-35 – 3.5″ Rough-In Plate
| – 3-3/4″ Hole Size | |
| – Fits RG4-Series Downlights | |
| – Fits DGIM4-Series Downlights |

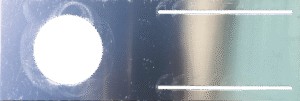

#885 – RIP-4 – 4″ Rough-In Plate
| – 4-1/4″ Hole Size | |
| – Fits DG4-Series Downlights | |
| – Fits DGIM4-Series Downlights | |
| – Fits DP4-Series Downlights | |
| – Fits TL4-Series Downlights |
#888 – RIP-6 – 6″ Rough-In Plate
| – 6-1/4″ Hole Size | |
| – Fits DP6-Series Downlights |
#1106 – LED7WRT4-5CCT – 4″ LED Retrofit Kit Downlight
| Model No: | #1106 – LED7WRT4-5CCT |
| Wattage (W): | 7W |
| Voltage (V): | 120VAC |
| Lumens (lm): | 650 lm |
| Life (Hrs): | 50,000 Hrs |
| Colour Temperatures: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Base: | E26 / Hardwire |
| Dimmable: | Yes – TRIAC |
| CRI: | 80 |
| Energy Efficiency: | 92.9 |
| Certification: | cETLus Classified |
| Height:(Excluding Base) | 1.46″ / 37 mm |
| Diameter: | 5.04″ / 128 mm |
| Fixture Type: | 4″ Pot Light Downlight Retrofit |
| Environmental Rating: | Damp Location, Type IC Rated |
| Carton Quantity: | 40 per Carton |
| Warranty: | 5 Years |
#1017 – LED9WRT5/6-5CCT – 5″ & 6″ LED Retrofit Kit Downlight
| Model No: | #1017 – LED9WRT5/6-5CCT |
| Wattage (W): | 9W |
| Voltage (V): | 120VAC |
| Lumens (lm): | 850 lm |
| Life (Hrs): | 50,000 Hrs |
| Colour Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K |
| Base: | E26 / Hardwire |
| Dimmable: | Yes – TRIAC |
| CRI: | 80 |
| Energy Efficiency: | 94.4 |
| Certification: | cETLus Classified |
| Height:(Excluding Base) | 1.46″ / 37 mm |
| Diameter: | 7.28″ / 185 mm |
| Fixture Type: | 5″/6″ Pot Light Downlight Retrofit |
| Environmental Rating: | Damp Location, Type IC Rated |
| Carton Quantity: | 40 per Carton |
| Warranty: | 5 Years |
#1134 – Field Adjustable 6″ LED Recessed Downlight
#1134 – Field Adjustable 6″ LED Recessed Downlight| Model No: | #1134 LED RT6-3X3CCT-AK |
| Wattage (W): | 7W / 10W / 17W |
| Lumens (lm): | 700 lm / 1000 lm / 1500 lm |
| Colour Temperatures: | 3000K / 3500K / 4000K |
| Voltage (V): | 120VAC – 347VAC |
| Life (Hrs) | 50,000 Hrs |
| Base: | Hardwire – 24″ Conduit – 3/8″ Snap-In Fitting |
| Dimmable: | Yes – 0-10V – down to 5% |
| CRI: | > 90 |
| Energy Efficiency: | 83.3 – 100 |
| Certification: | cUL |
| Height:(Excluding Base) | 5-3/16″/ 131 mm |
| Diameter: | 8-1/4″ / 210 mm |
| Hole Size Cutout: | 6-1/4″ / 158.75 mm |
| Environmental Rating: | Wet Location, Type IC Rated |
| Operating Temperature: | -30°C to 40°C |
| Carton Quantity: | 4 per Carton |
| Warranty: | 5 Years |
| Optional Accessory: | #1057 – LED RT6-GOOF8 (Goof Ring for 8″ Hole Size) |
#1057 – LED RT6-GOOF8 (Goof Ring)
#1057 – LED RT6-GOOF8 (Goof Ring)| Model No: | #1057 – LEDRT6-GOOF8 |
| Descripton: | Goof Ring |
| Outside Diameter: | 10.5″ |
| Inside Diameter: | 6.25″ |

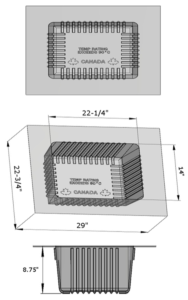

#1024 – G-59 Vapour Barrier
| Flange Dimensions: | 29″ x 22-3/4″ |
| Recess Dimensions: | 22-1/4″ x 14″ x 8-3/4″ |
| Rib-reinforced: | Yes |
| Use: | For all sizes pot lights |
#1025 – VB02 Vapour Barrier
#1025 – VB02 Vapour Barrier| Flange Dimensions: | 24″ x 20″ |
| Recess Dimensions: | 20″ x 8″ x 3-1/2″ |
| Rib-reinforced: | No |
| Use: | For Slim LED Lights |
