LED Commercial Fixtures

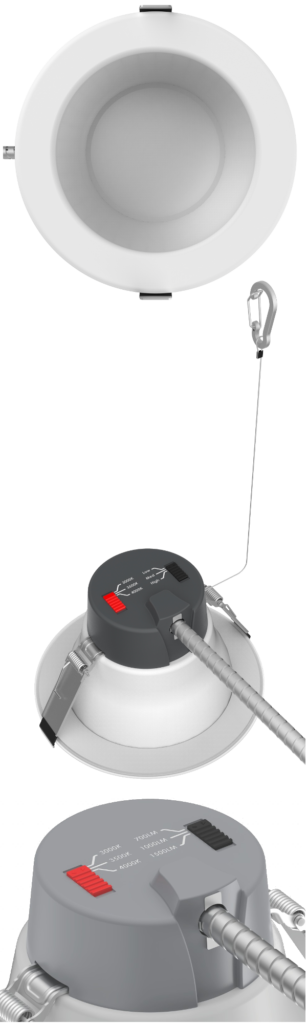

#1134 – Field Adjustable 6″ LED Recessed Downlight



Model No: LED RT6-3X3CCT-AK
Wattage (W): 7W / 10W / 17W
Lumens (lm): 700 lm / 1000 lm / 1500 lm
Colour Temperatures: 3000K / 3500K / 4000K
Voltage (V): 120VAC – 347VAC
Life (Hrs) 50,000 Hrs
Base: Hardwire – 24″ Conduit – 3/8″ Snap-In Fitting
Dimmable: Yes – 0-10V – down to 5%
CRI: > 90
Energy Efficiency: 83.3 – 100
Certification: cUL
Height:(Excluding Base) 5-3/16″/ 131 mm
Diameter: 8-1/4″ / 210 mm
Hole Size Cutout: 6-1/4″ / 158.75 mm
Environmental Rating: Wet Location, Type IC Rated
Operating Temperature: -30°C to 40°C
Carton Quantity: 4 per Carton
Warranty: 5 Years
Optional Accessory: #1057 – LED RT6-GOOF8 (Goof Ring for 8″ Hole Size)

90CRI Logo Wet Location Logo (PNG) Dimmable_Logo_CNA

































#1057 – LED RT6-GOOF8 (Goof Ring)
Model No: #1057 – LEDRT6-GOOF8
Descripton: Goof Ring
Outside Diameter: 10.5″
Inside Diameter: 6.25″

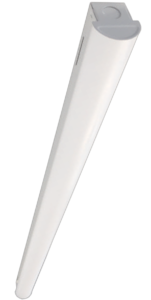

LED 35W Strip Light 120V-340VAC – 3CCT
Model No: #1115 – LED35WSTP-3CCT
Wattage: 35W
Colour Temperature: 3500K / 4000K / 5000K
Light Output: 4585 lm
Voltage: 120V-347VAC
Dimmable: 0-10V Dimming
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: cUL
Surge Protection: 2.5kV
CRI: 82
Energy Efficiency: 131 lm/W
Fixture Colour: White
Dimensions (mm): 1202 L x 60.2 W x 71.2 H
Dimensions (inches): 47.3″L x 2.4″W x 2.8″H
Warranty: 5 Years

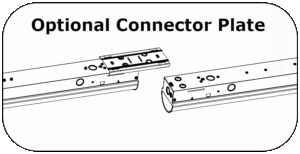

Optional Accessory: #1113 LED STP-CP (Connector Plate)



















LED Flood 30W – Yoke / Trunnion Mount – 5000K
Model No: #988 – TP-FL30-G3T-R5
Wattage: 30W
Colour Temperature: 5000K
Light Output: 2,700 lm
Voltage: 100V-277VAC
Dimmable: No
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: cETLus
CRI: 80
Energy Efficiency: 90 lm/W
Power Factor: 0.9
THD: 20%
Fixture Colour: Dark Bronze
Environmental Rating: Wet Location
Warranty: 5 Years























LED Wall Pack – 60W (120V-347VAC) 4000K
SKU /Model No: #1087 – WPGR60HV740DS11
Wattage: 59.97 W (60W)
Colour Temperature: 4000K
Light Output: 7,825.8 lm
Voltage: 120V – 347VAC
Dimmable: Yes – 0-10V
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: DLC, cETLus, Wet Location
CRI: 72
Energy Efficiency: 130.51 lm/W
Power Factor: 0.9204
THD: 10.76%
Fixture Colour: Dark Bronze
Photocell: No
Warranty: 5 Years























LED Wall Pack – 120W  (120V-347VAC) 4000K
SKU / Model No: #1086 – WPGR120HV740DS11
Wattage: 114.1 W (120W)
Colour Temperature: 4000K
Light Output: 15,029 lm
Voltage: 120V – 347VAC
Dimmable: Yes – 0-10V
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: DLC, cETLus, Wet Location
CRI: 72.2
Energy Efficiency: 131.75 lm/W
Power Factor: 0.9095
THD: 19.85 %
Fixture Colour: Dark Bronze
Photocell: No
Warranty: 5 Years























LED Wall Pack – 145W (347V) 5000K
Model No: WP145W50KBZ-347V
Wattage: 145W
Colour Temperature: 5000K
Light Output: 16,400 lm
Voltage: 347VAC
Dimmable: No
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: DLC Pending, cUL
CRI: 82
Energy Efficiency: 90 lm/W
Power Factor: 0.9
THD: 18%
Fixture Colour: Dark Bronze
Photocell: No
Warranty: 5 Years





















LED Canopy Light – 70W 5000K
Model No: CP70W50KBZ
Wattage: 70W
Colour Temperature: 5000K
Light Output: 5928 lm
Voltage: 110V-277VAC
Dimmable: Yes
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: DLC, cUL
CRI: 77
Energy Efficiency: 86.3 lm/W
Power Factor: 0.977
THD: 22%
Fixture Colour: Dark Bronze
Photocell: No
Warranty: 5 Years

DLC Logo - R























LED High Bay – 90W 5000K
Model No: HB90W50K
Wattage: 90W
Colour Temperature: 5000K
Light Output: 12,600 lm
Voltage: 110V-277VAC
Dimmable: Yes, 0-10V down to 10%
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: cUL
Energy Efficiency: 140 lm/W
Power Factor: 0.9
THD: 15%
Fixture Colour: White
Beam Angle: 120°
Diffuser Type: Clear Acrylic Diffuser
Dimensions: 23.9″ x 10.3″ x 1.8″
Warranty: 5 Years

DLC Logo - R





















LED High Bay – 180W 5000K
Model No: HB180W50K
Wattage: 180W
Colour Temperature: 5000K
Light Output: 23,800 lm
Voltage: 110V-277VAC
Dimmable: Yes, 0-10V down to 10%
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: cUL
Energy Efficiency: 134 lm/W
Power Factor: 0.9
THD: 15%
Fixture Colour: White
Beam Angle: 120°
Diffuser Type: Clear Acrylic Diffuser
Dimensions: 23.9″ x 19.7″ x 1.8″
Warranty: 5 Years

DLC Logo - R





















LED High Bay – 190W – 347V 5000K
Model No: HB190W50K-347V
Wattage: 190W
Colour Temperature: 5000K
Light Output: 25,000 lm
Voltage: 347VAC
Dimmable: Yes, 0-10V down to 10%
Rated Life: 50,000 Hrs.
Base Type: Hardwire
Certifications: DLC, cUL
CRI: 80
Energy Efficiency: 132 lm/W
Power Factor: 0.9
THD: 15%
Fixture Colour: White
Beam Angle: 120°
Diffuser Type: Clear Acrylic Diffuser
Dimensions: 24″ x 24″ (2′ x 2′)               23.9″ x 19.7″ x 1.8″
Warranty: 5 Years

DLC Logo - R
