LED Under Cabinet Lighting









#1129 – LED2WRD1-30K  (1″ Cabinet/Step Light)
Wattage (W): 2 Watts
Voltage (V): 12V DC
Color Temperature: 3000K
Water Resistance Rating: IP67 Wet Location, Outdoor Rated
Overall Light Output: 160 lm
Trim Colour:
 Matte White + Matte Black 1.5″ Round Trims and Scoops
Beam Angle: 45°
Dimmable: Yes – down to 10%
Light Engine Dimensions: 1″ D x 1-1/4″ H (Without Spring Clip)
Hole Cutout Size: 1-3/8″ (35 mm)
Rated Life: 50,000 Hrs
Safety Certification: cETLus
Warranty: 5 Years
Carton Quantity: 210 Pieces Per Carton

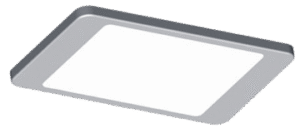

LED6WPanel
SKU – Model No: #904 – LED6WPanel 30K
Wattage (W):  6W
Colour Temperature:  3000K
Voltage:  12VDC
Light Output:  450lm
Rated Life  50,000 Hrs.
Finish:  Aluminum
Dimmable:  Yes
Safety Certification:  cUL
Length:  7-9/16″ / 192 mm
Width:  5-7/16″ / 113 mm
Surface Mount Height:  3/8″ / 9.5 mm
Carton Quantity:  50 Pieces Per Carton
Warranty:  3 Years

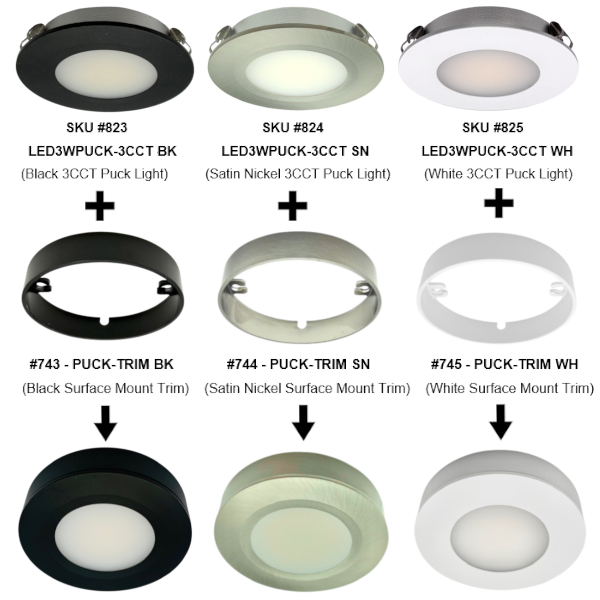

LED Puck Lights

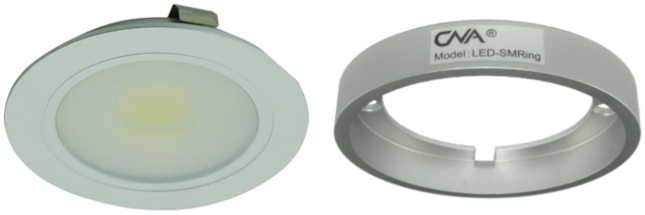

LED3WPuck
SKU – Model No:

#902- LED3WPuck 30K (Listing Model: 20881)

#905 – LED-SMRing
Wattage (W): 3W
Colour Temperature: 3000K
Voltage: 12VDC
Light Output: 300 lm (Total)
230 lm (Delivered)
Beam Angle
 150°
Rated Life: 50,000 Hrs.
Housing Material: Aluminum
Dimmable: Yes
Safety Certification: cUL
Diameter: 2-7/16″ / 62 mm
Surface Mount Height: 1/2″ / 12 mm
Recessed Cutout Diameter: 2-1/8″ / 55 mm
Carton Quantity: 100 Pieces Per Carton
Warranty: 3 Years
IES File: LED3WPuck-20881 IES File

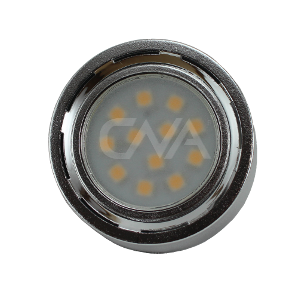

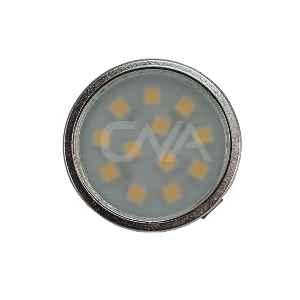

LED12SMD PUCK LIGHTS (Hardwired) – DISCONTINUED

  LED 12SMD Puck - Surface Mount LED 12SMD Puck - Recessed Mount









LED 12SMD PUCK LIGHT 3000K  (Non-Dimmable) – DISCONTINUED – OUT OF STOCK

Wattage (W): 2W
Voltage (V): 12VDC
Lumens (lm): 180 lm per puck
Life (Hrs): 50,000 Hrs
Incandescent Equivalent: 20W Halogen
Color temperature: 3000K
Shape: PUCK











LED 12SMD PUCK LIGHT 4500K  (Non-Dimmable) – DISCONTINUED – LIMITED STOCK

Wattage (W): 2W
Voltage (V): 12VDC
Lumens (lm): 200 lm per puck
Life (Hrs): 50,000 Hrs
Incandescent Equivalent: 20W Halogen
Color temperature: 4500K
Shape: PUCK

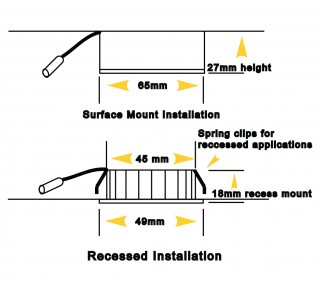

PUCK LIGHT DIMENSIONS & MOUNTING DIAGRAM

















LED RIBBON LIGHTS



RL-1FT 3000K
RL-1FT (3000K /5000K)



Wattage (W): 3.5 Watts / ft
Voltage (V): 12VDC
CRI: 90
Life (Hrs): 50,000 Hrs
Nominal Length: 12 inches / 1 FT
Color Temperature: 3000K / 5000K
Waterproofing: IP55 – Indoor / Outdoor
LED Quantity: 18 LEDs / FT
Light Output: 280 lm / FT
Current Draw: 0.292 A / FT
LED Type: 2835 SMD LEDs
Dimmable: Yes
Maximum Linkable Length: 24 Feet Max























RDC – Ribbon to Power Supply Connector

RDC-24 24″ Ribbon to Power Supply Connector
RDC-48 48″ Ribbon to Power Supply Connector
RDC-60 60″ Ribbon to Power Supply Connector

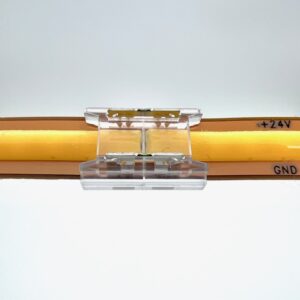

RLC – Flexible Ribbon Light Connector



RLC-12 12″ Flexible Ribbon Light Connector
RLC-24 24″ Flexible Ribbon Light Connector
RLC-36 36″ Flexible Ribbon Light Connector

























RLC-4RSRLC-4RS    4-Way Ribbon Light Connector



RLC-4RS 4-Way Flexible Ribbon Light Connector























RLC-LTX ConnectorsRibbon Light Connectors
RL-L “L” Ribbon Light Connector
RL-X “X” Ribbon Light Connector

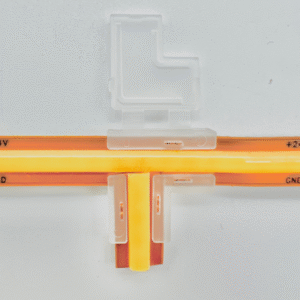

RL-T “T” Ribbon Light Connector

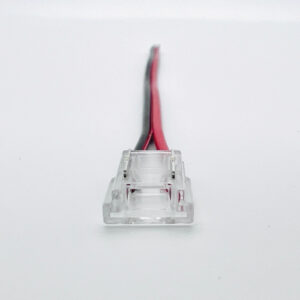

RL-4P “4-Pin Male to Male Connector
RL-4PEC End Cap














DC-HW - Black BackgroundDC Barrel Hardwire Connector



DC-HW DC Barrel Hardwire Connector




















SPEC SHEET

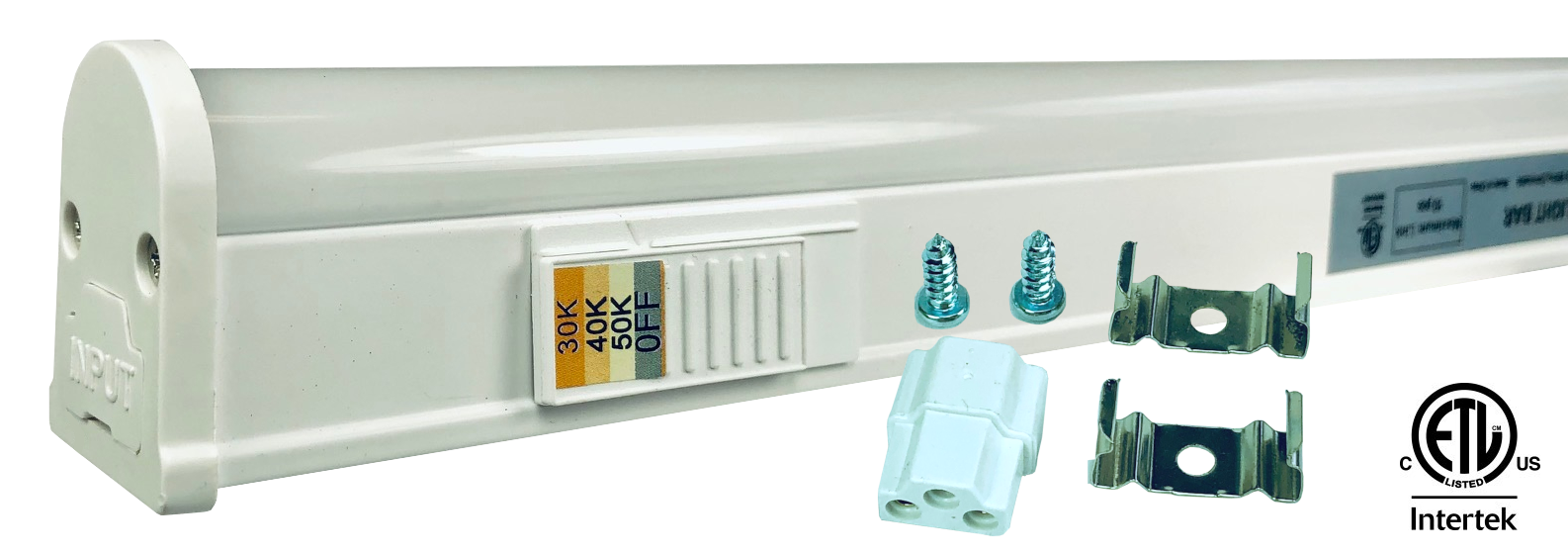

LED T5Bar Series Undercabinet Strip Lights

      PDF Spec Sheet

Model No:
SKU No:		T5Bar-11-3CCT
#1091		T5Bar-24-3CCT
#1092		T5Bar-36-3CCT
#1093		T5Bar-48-3CCT
#1094
Selectable Colour Temperature:3000K / 4000K / 5000K3000K / 4000K / 5000K3000K / 4000K / 5000K3000K / 4000K / 5000K
Voltage:120VAC120VAC120VAC120VAC
Wattage:5 W9 W14 W18 W
Light Output:420 lm760 lm1120 lm1530 lm
Efficiency:84 lm/W84.4 lm/W80 lm/W85 lm/W
Rated Life:50,000 Hrs50,000 Hrs50,000 Hrs50,000 Hrs
CRI:80808080
Max Linkable:10 Fixtures10 Fixtures10 Fixtures10 Fixtures
Nominal Length:1 Foot2 Feet3 Feet4 Feet
Length:12"24"36"48"
Width:1/2"1/2"1/2"1/2"
Height:5/8"5/8"5/8"5/8"
Dimmable:DimmableDimmableDimmableDimmable
Operating Temperature:-20°C to +40°C-20°C to +40°C-20°C to +40°C-20°C to +40°C
Safety Certification:cETLuscETLuscETLuscETLus
Carton Quantity:12121212
Warranty:5 Years5 Years5 Years5 Years

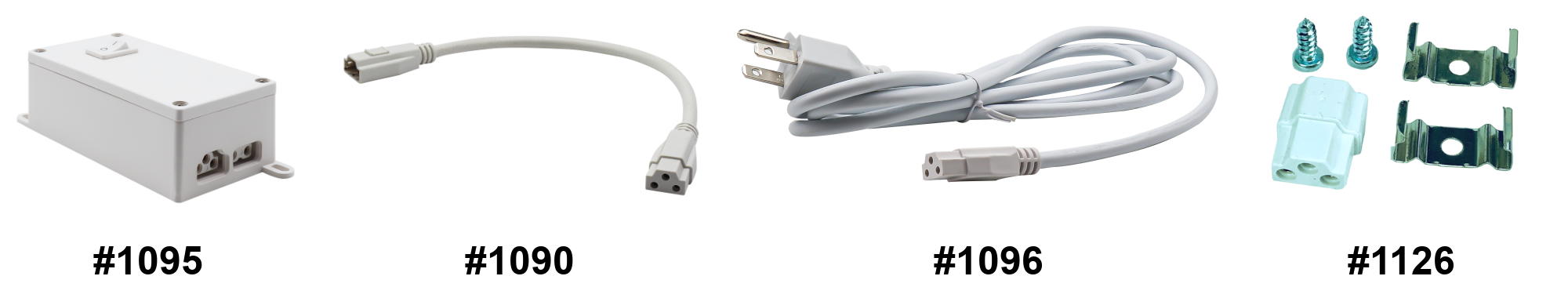

Optional Accessories:
#1095 - T5Bar-JboxJunction Box with On/Off Switch, 1/2" Knockout
#1090 - T5Bar-Link1212-inch Flexible Link Cable
#1096 - T5Bar-Plug6FT Length AC Power Cord Plug

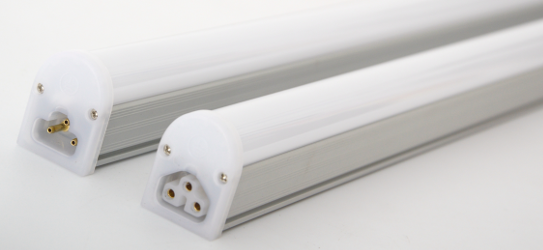

DL Series LED Light Strip Fixtures

Note: This product series is being phased out but some part numbers are still available.       PDF Spec Sheet

Model No:T5DL300-4WT5DL600-7WT5DL900-12WT5DL1200-15W
Colour Temperature:3000K3000K / 4000K3000K / 4000K3000K / 4000K
Voltage:120VAC120VAC120VAC120VAC
Wattage:4 W7 W12 W15 W
Light Output:480 lm840 lm1440 lm1760 lm
Efficiency:120 lm/W120 lm/W120 lm/W110 lm/W
Rated Life:50,000 Hrs50,000 Hrs50,000 Hrs50,000 Hrs
CRI:> 80> 80> 80> 80
Max Linkable:200 W200 W200 W200 W
Nominal Length:1 Foot2 Feet3 Feet4 Feet
Length:11-1/8"22-7/16"34-1/2"46-7/16"
Width:1"1"1"1"
Height:1-3/8"1-3/8"1-3/8"1-3/8"
Dimmable:DimmableDimmableDimmableDimmable
Safety Certification:cETLcETLcETLcETL
Carton Quantity:12121212
Warranty:5 Years5 Years5 Years5 Years
Included Accessories:
Optional Accessories:
T5DL JBoxJunction Box
T5DL-2M-Plug2 Meter Length AC Power Cord Plug
CNA LED LSH JBox 00







LSH Series LED Light Strip Fixtures

CNA LED LSH Light Strip 2 Note: This product series is being phased out but some part numbers are still available.         PDF Spec Sheet

Model No:LED LSH-9IN 3000KLED LSH-2FT 3000KLED LSH-3FT 3000K
Colour Temperature:3000K3000K3000K
Voltage:100V-240VAC100V-240VAC100V-240VAC
Wattage:4 W9 W13 W
Light Output:400 lm900 lm1300 lm
Efficiency:100 lm/W100 lm/W100 lm/W
Rated Life:50,000 Hrs50,000 Hrs50,000 Hrs
CRI:> 80> 80> 80
Max Linkable:200 W200 W200 W
Nominal Length:1 Foot2 Feet3 Feet
Length:28.4 cm / 11-3/16"57.2 cm / 22-1/2"87.7 cm / 34-9/16"
Width:2.8 cm / 1-1/8"2.8 cm / 1-1/8"2.8 cm / 1-1/8"
Height:3.8 cm / 1-1/2"3.8 cm / 1-1/2"3.8 cm / 1-1/2"
Dimmable:DimmableNon-DimmableNon-Dimmable
Safety Certification:cETLuscETLuscETLus
Carton Quantity:121212
Warranty:3 Years3 Years3 Years
Included Accessories: CNA LSH Light Strip Accessories 00



Optional Accessories:
LED LSH JboxJunction Box
LED LSH-Plug2m2 Meter Length AC Power Cord Plug
CNA LED LSH JBox 00CNA LED LSH Plug2m 00

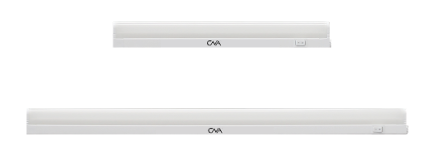

LS Series LED Light Strip Fixtures





Note: This product series is being phased out but some part numbers are still available.

Model Number:

LED LS-1

LED LS-2
Colour Temperature: 4000K  4000K
Voltage: 120VAC 120VAC
Wattage: 4.2W 8.4W
Light Output: 325 lm 641 lm
Efficiency: 77 lm/W 76 lm/W
Rated Life: 40,000 Hrs. 40,000 Hrs.
CRI: > 80  > 80
Maximum Linkable: 20 pcs  12 pcs
Nominal Length: 1 Foot  2 Feet
Length: 343 mm 604mm
Width: 22 mm 22 mm
Height: 42.5 mm 42.5 mm
Dimmable: Non-Dimmable Non-Dimmable
Safety Certification: cETLus cETLus
Carton Quantity: 30 30





Accessories:





LS Link-6 6-inch Link Cable
LS Link-12 12-inch Link Cable
