PL & PLC Lamps / T8 & T25 Tubes

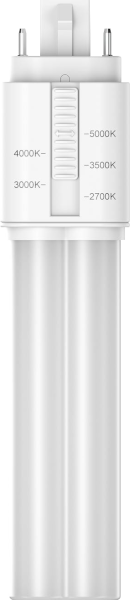

#1214 – LED5.5WPL13-HY 4CCT (NEW – Mid to Late January)
(HYBRID Ballast Compatible / Ballast Bypass)| Model Number: | #1214 – LED5.5WPL13-HY 4CCT |
| Wattage (W): | 5.5W |
| CFL PLC Equivalent: | PL-13 / PL13 (2-PIN) |
| Color Temperature: | 2700K / 3000K / 3500K / 4000K |
| Voltage: | 120V-277VAC |
| Ballast Compatible: | HYBRID – Ballast Compatible & Ballast Bypass 120V-277V |
| Light Ouput (lm): | 620 lm |
| Rated Life: | 50,000 Hrs. |
| Beam Angle (degrees): | 120° |
| Dimmable: | No |
| Energy Efficiency: |
112.7 lm/W (@4000K) |
| CRI: | 80 |
| Safety Certification: | cUL Classified |
| Operating Temperature: | -20°C to +45°C |
| Environmental Rating: | Damp Location. Not for Enclosed Fixtures |
| Dimensions (inch): |
7″ x 1-1/4″ x 1-3/16″ |
| Dimiensions (mm) |
178 mm x 32 mm x 18 mm |
| Base: | GX23 2-PIN |
| Carton Quantity: | 24 Pieces Per Carton |
| Warranty: | 5 Years |
| Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended. | |
#979 – LED 6WPL13-HY-30K (Discontinued)
#980 – LED 6WPL13-HY-40K (Discontinued)
(HYBRID Ballast Compatible / Ballast Bypass)| Model Number: | #979 – LED6WPL13HY-30K #980 – LED6WPL13-HY-40K |
| Wattage (W): | 6W |
| CFL PLC Equivalent: | 2-Pin PL13 / PL-13 |
| Color Temperature: | 3000K / 4000K |
| Voltage: | 120V-277VAC |
| Ballast Compatible: | HYBRID – Ballast Compatible & Ballast Bypass 110V-277V |
| Light Ouput (lm): | 600 lm |
| Rated Life: | 40,000 Hrs. |
| Beam Angle (degrees): | Omni-Directional |
| Dimmable: | No |
| Power Factor: | 0.9 |
| CRI: | 80 |
| Safety Certification: | cUL |
| Operating Temperature: | -20°C to +45°C |
| Environmental Rating: | Not for Enclosed Fixtures |
| Length: | 6-15/16 inches / 176 mm |
| Width: | 1-1/4 inches / 31 mm |
| Base: | GX23 |
| Carton Quantity: | 100 Pieces Per Carton |
| Warranty: | 5 Years |
| Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended. | |

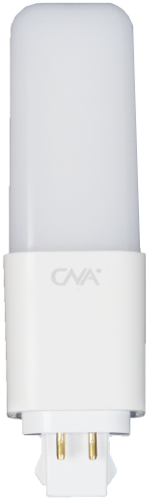

#1023 – LED 7WPLC13-HY-30K
#916 – LED 7WPLC13-HY-40K
(HYBRID Ballast Compatible/Bypass)
| Model Number: | #1023 – LED7WPLC13-HY-30K #916 – LED7WPLC13-HY-40K |
| Wattage (W): | 7W |
| CFL PLC Equivalent: | 4-Pin PLC13 / PLC-13 |
| Color Temperature: | 4000K |
| Voltage: | 120V-277VAC |
| Operation: | Ballast Compatible / Bypass |
| Light Ouput (lm): | 650 lm |
| Rated Life: | 40,000 Hrs. |
| Beam Angle (degrees): | 360° |
| Dimmable: | No |
| Power Factor: | 0.9 |
| CRI: | 80 |
| Safety Certification: | cUL |
| Operating Temperature: | -20°C to +45°C |
| Environmental Rating: | Not for Enclosed Fixtures |
| Length: | 5-1/32 inches / 128mm |
| Width: | 1-7/16 inches / 37 mm |
| Base: | G24q Universal 4-Pin |
| Carton Quantity: | 10 / 50 Pieces Per Carton |
| Warranty: | 3 Years |
| Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended. | |

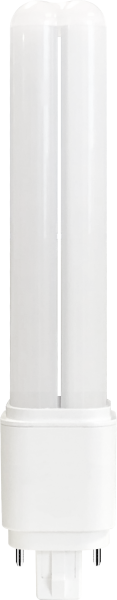

#1215 – LED9WPLC26/32/42-HY 40K (NEW – ETA Mid to Late January)
(HYBRID Ballast Compatible / Ballast Bypass)
#1215 – LED9WPLC26/32/42-HY 40K (NEW – ETA Mid to Late January)| Model Number: | #1215 – LED9WPLC26/32/42-HY 40K |
| Wattage (W): | 9W |
| CFL PLC Equivalent: | PLC26 / PLC 32 / PLC42 (4-PIN) |
| Color Temperature: | 4000K |
| Voltage: | 120V-277VAC |
| Ballast Compatible: | HYBRID – Ballast Compatible & Ballast Bypass 120V-277V |
| Light Ouput (lm): | 1250 lm |
| Rated Life: | 50,000 Hrs. |
| Beam Angle (degrees): | 360° – Omnidirectional |
| Dimmable: | No |
| Energy Efficiency: |
139 lm/W |
| CRI: | 80 |
| Safety Certification: | cUL Classified |
| Operating Temperature: | -20°C to +45°C |
| Environmental Rating: | Damp Location. Not for Enclosed Fixtures |
| Dimensions (inch): |
6-7/8″ x 1-3/8″ x 1-3/8″ |
| Dimiensions (mm) |
173 mm x 34 mm x 34 mm |
| Base: | G24Q 4-PIN |
| Carton Quantity: | 24 Pieces Per Carton |
| Warranty: | 5 Years |
| Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended. | |
#917 – LED 11WPL26/32/42-HY-30K
#1000 – LED 11WPL26/32/42-HY-40K (Discontinued)
(HYBRID Ballast Compatible/Bypass)
| Model Number: | #917 – LED11WPL26/32/42-HY-30K #1000 – LED11WPL26/32/42-HY-40K |
| Wattage (W): | 11W |
| CFL PLC Equivalent: | 4-Pin PLC 26/32/42 4-Pin PLT 26/32/42 |
| Color Temperature: | 3000K / 4000K |
| Voltage: | 120V-277VAC |
| Operation: | Ballast Compatible / Bypass |
| Light Ouput (lm): | 1300 lm |
| Rated Life: | 40,000 Hrs. |
| Beam Angle (degrees): | 360° |
| Dimmable: | No |
| Power Factor: | 0.9 |
| CRI: | 80 |
| Safety Certification: | cUL |
| Operating Temperature: | -20°C to +45°C |
| Environmental Rating: | Not for Enclosed Fixtures |
| Length: | 6-7/16 inches / 165 mm |
| Width: | 1-7/16 inches / 37 mm |
| Base: | G24q / GX24q Universal 4-Pin |
| Carton Quantity: | 50 / 200 Pieces Per Carton |
| Warranty: | 3 Years |
| Note: This lamp has been tested to be compatible with the vast majority of models among major ballast manufacturers. As such, there still may be a chance your ballast will not work with this lamp. A trial test is always recommended. | |
LED T8 Tubes
Ballast Compatible & Ballast Bypass Models
-
NSF Certified
-
Energy Saving
-
Lightweight
-
230° Beam Angle (Almost Omni-Directional)
-
Non-Yellowing Rigid Glass Diffuser
| Ballast Compatible / Bypass | Model Number | Lumens | Spec Sheet |
|---|---|---|---|
| Ballast Compatible | #1209 - LED11WT8-CM 35K | 1800 lm | Spec Sheet |
| Ballast Compatible | #1210 - LED11WT8-CM 40K | 1800 lm | Spec Sheet |
| Ballast Compatible | #1211 - LED11WT8-CM 50K | 1800 lm | Spec Sheet |
| HYBRID - Ballast Compatible / Ballast Bypass - Double Ended | #1014 - LED12WT8-HY 40K | 1800 lm | Spec Sheet Installation Instructions |
| HYBRID - Ballast Compatible / Ballast Bypass - Double Ended | #1015 - LED12WT8-HY 50K | 1800 lm | Spec Sheet Installation Instructions |
| Direct 347V - Double Ended | #1073 LED14WT8-347V 40K | 1800 lm | Spec Sheet |
| Bypass - Single Ended | #837 LED 15W 4FT T8 835 (Limited Stock) | 1726 lm | Spec Sheet |
| Bypass - Single Ended | #850 LED 15W 4FT T8 840 (Limited Stock) | 1726 lm | Spec Sheet |
| Bypass - Single Ended | #851 LED 15W 4FT T8 850 (Limited Stock) | 1726 lm | Spec Sheet |
LED T5 Tubes
– Ballast Compatible
-
DLC Listed
- NSF Certified
-
Direct Replacement
-
Energy Saving
-
Lightweight
-
185° Beam Angle
-
Non-Yellowing Rigid Glass Diffuser
LED25WT5 8XX COMP
| Model Number: | #943 LED25WT5 840 COMP #955 LED25WT5 850 COMP |
|---|---|
| Electronic Ballast Compatibility: | Instant Start & Program Start |
| Rated Power (W): | 28 W (High Ballast Factor) |
| Colour Temperature: | 4000K / 5000K |
| Direct Replacement For: | F54/T5/HO |
| Total Harmonic Distortion (THD): | 20% |
| Power Factor: | 0.9 |
| Light Output: | 3500 lm |
| Efficacy (lm/W): | 125 lm/W |
| Colour Rendering Index (CRI): | 80 |
| Rated Life (Hours): | 50, 000 Hrs. |
| Beam Angle: | 185° |
| Nominal Length: | 4 Feet |
| Diffuser Material: | Glass (Non-Yellowing - Rigid) |
| Certifications: | DLC, NSF, cULus |
| Classification Type: | Replacement Lamps (plug and play) UL Type A |
| Carton Quantity: | 25 pieces / box |
