Miniature Bulbs

LED Miniature Bulbs



LED3WE11-DIM 30K

Wattage (W):	3W
Voltage (V):	120VAC
Lumens (lm):	300 lm
Life (Hrs):	15,000 Hrs
Halogen Equivalent:	50W Halogen
Base:	E11 / Minican
Colour Temperature:	3000K
Dimmable:	Yes
Environmental Rating:	Not for use in enclosed fixtures
Shape:	JD / Peanut
Length:	49.5 mm (1-15/16″)
Diameter:	17.5 mm (11/16″)



---

LED1.5WG4SM 30K

Wattage (W):	1.5W
Voltage (V):	12VAC / 12VDC
Lumens (lm):	150 lm
Life (Hrs):	15,000 Hrs
Halogen Equivalent:	20W Halogen
Base:	G4
Colour Temperature:	3000K
Dimmability:	Depends on transformer and/or dimmer
Shape:	JC / Peanut
Length:	32 mm (1-1/4″)
Width:	12.5 mm (1/2″)
Height:	9 mm (11/32″)



---

#878 – LED3WG9-DIM 30K

#879 – LED3WG9-DIM 41K

#1080 – LED3WG9-DIM 50K

Wattage (W):	3W
Voltage (V):	120VAC
Lumens (lm):	300 lm
Life (Hrs):	15,000 Hrs
Halogen Equivalent:	40W Halogen
Base:	G9
Colour Temperature:	3000K / 4100K / 5000K
Dimmable:	Yes
Environmental Rating:	Enclosed Fixtures
Shape:	JCD / Peanut
Length:	4.8 cm (1-7/8″)
Diameter:	1.75 cm (11/16″)



---

#1179  – LED4.5WG9-DIM 30K   (NEW)

#1180 – LED4.5WG9-DIM 40K   (NEW)



Wattage (W):	4.5W
Voltage (V):	120VAC
Lumens (lm):	450 lm
Life (Hrs):	15,000 Hrs
Halogen Equivalent:	60W Halogen
Base:	G9
Colour Temperature:	3000K / 4000K
Dimmable:	Yes – TRIAC to 1%
Beam Angle:	Omni-Directional
Energy Efficiency:	100 lm/W
Operating Temperature:	-20°C to 45°C
Environmental Rating:	Enclosed Fixtures
Shape:	JCD / Peanut
Length:	55 mm (2-3/16″)
Diameter:	19 mm (3/4″)



---

#866  – LED5WG9SM-DIM 30K

#1020 – LED5WG9SM-DIM 40K



Wattage (W):	5W
Voltage (V):	120VAC
Lumens (lm):	500 lm
Life (Hrs):	15,000 Hrs
Halogen Equivalent:	60W Halogen
Base:	G9
Colour Temperature:	3000K / 4000K
Dimmable:	Yes
Environmental Rating:	Enclosed Fixtures
Shape:	JCD / Peanut
Length:	54 mm (2-1/8″)
Diameter:	19.5 mm (3/4″)



---

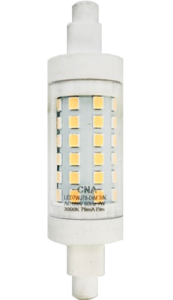

#1130 – LED 6W J78SM-DIM 30K

#1131 – LED 6W J78SM-DIM 40K



Wattage (W):	6W
Voltage (V):	120VAC
Lumens (lm):	600 lm
Life (Hrs):	15,000 Hrs
Halogen Equivalent:	100W Halogen
Base:	R7s
Colour Temperature:	3000K / 4000K
Dimmable:	Yes – with Lutron DVELV-300P / DVCL-153P
Shape:	J Type Linear 78mm (Q100T3/CL/78m)
Length:	78 mm (3-1/16″)
Width:	23 mm (29/32″)
Height:	22 mm (27/32″)





---

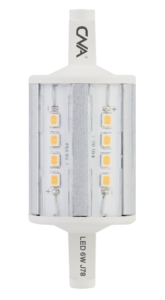

#956 – LED 6W J78 30K

#957 – LED 6W J78 40K



Wattage (W):	6W
Voltage (V):	120VAC
Lumens (lm):	750 lm
Life (Hrs):	15,000 Hrs
Halogen Equivalent:	100W Halogen
Base:	R7s – Offset
Colour Temperature:	3000K / 4000K
Dimmable:	Yes – with Lutron DVELV-300P / DVCL-153P
Shape:	J Type Linear 78mm (Q100T3/CL/78m)
Length:	78 mm (3-1/16″)
Width:	30 mm (1-3/16″)
Height:	30 mm (1-3/16″)



---

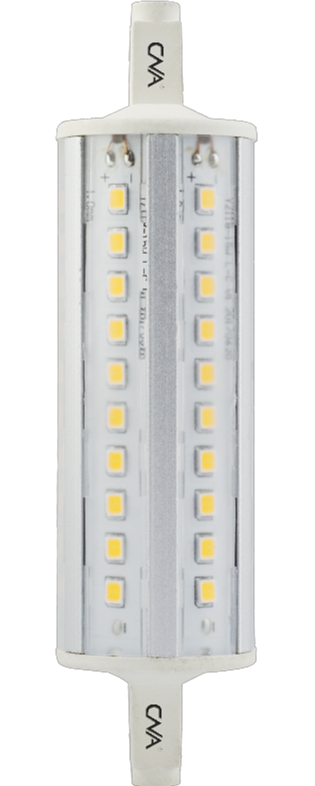

#981 – LED 14W J118 30K

#1132 – LED 14W J118 40K



Wattage (W):	14W
Voltage (V):	120VAC
Lumens (lm):	1400 lm
Life (Hrs):	15,000 Hrs
Halogen Equivalent:	150W (120V) – 200W (130V)
Base:	R7s – Offset
Colour Temperature:	3000K / 4000K
Dimmable:	Yes – with Lutron DVELV-300P / DVCL-153P
Shape:	J Type Linear 118mm (Q150T3/CL/118m) (Q200T3/CL/118m)
Length:	118 mm (4-5/8″)
Diameter:	30 mm (1-5/32″)





---

#1050 – LED3.5WT25-30K

Wattage (W):	3.5W
Voltage (V):	120V
Lumens (lm):	350 lm
Life (Hrs):	15,000 Hrs
Incandescent Equivalent:	40W Incandescent
Base:	E12 / Candelabra
Color temperature:	3000K
Dimmable:	Yes
Environmental Rating:	Enclosed Fixtures
Shape:	T25 – All Glass
Length:	83 mm (3-1/4″)
Diameter:	25 mm (1″)



---

#1064 – LED3.5WT25-FR 30K

Wattage (W):	3.5W
Voltage (V):	120V
Lumens (lm):	300 lm
Life (Hrs):	15,000 Hrs
Incandescent Equivalent:	40W Incandescent
Base:	E12 / Candelabra
Color temperature:	3000K
Dimmable:	Yes
Environmental Rating:	Enclosed Fixtures
Shape:	T25 – Frosted Glass
Length:	83 mm (3-1/4″)
Diameter:	25 mm (1″)
