LED Flush Mounts
#1081 – DPS-4-5CCT – 4″ Slim LED Downlight
| Model No: | #1081 – DPS-4-5CCT |
| Wattage (W): | 9W |
| Voltage (V): | 120VAC |
| Rated Lumens (lm): | 700 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Base: | Hardwire (E26 Optional with Accessory Kit) |
| 5CCT Colour Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Housing Material: | Aluminum |
| Trim Colour Included: | White |
| Trim Mounting: | Magnetic – Interchangeable |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 77.7 lm/W |
| Beam Angle: | 110° |
| Mounting: | 4″ Octagonal J-BOX or 4″ Recessed Housing with Optional Accessory |
| Enrironmental Rating: | Wet Location, Type IC Rated |
| Safety Certification: | cETLus |
| Dimensions: | 4-7/8″D x 1-1/8″H |
| Carton Quantity: | 24 per Carton |
| Warranty: | 5 Years |
#1082 – DPS-4-BK-TRIM – 4″ Black Trim
#1083 – DPS-4-BN-TRIM – 4″ Brushed Nickel Trim
#1084 – DPS-ACC – Accessory Kit for 4″ Recessed Housing Mounting Option
#1201 – DPM-4-5CCT – 4″ Slim LED Downlight
| Model No: | #1201- DPM-4-5CCT |
| Wattage (W): | 9W |
| Voltage (V): | 120VAC |
| Rated Lumens (lm): | 650 lm |
| L70 Rated Life (Hrs): | 35,000 Hrs |
| Base: | Hardwire (E26 Optional with Accessory Kit) |
| 5CCT Colour Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Housing Material: | Aluminum |
| Trim Colour Included: | White |
| Trim Mounting: | Magnetic – Interchangeable |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 77.7 lm/W |
| Beam Angle: | 38° |
| Mounting: | 4″ Octagonal J-Box |
| Enrironmental Rating: | Wet Location, Type IC Rated w/ J-Box |
| Safety Certification: | cETLus |
| Dimensions: | 4-7/8″D x 1-1/8″H |
| Carton Quantity: | 24 per Carton |
| Warranty: | 5 Years |
| Optional Accessories: | #1202 – DPM-4 BK Trim (Black Trim)
#1203 – DPM-4 BN Trim (Brushed Nickel Trim) |

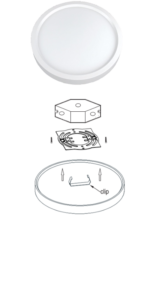

#1053 – DS-5-3CCT – 5″ LED Flush Mount Downlight
| Model No: | #1053 – DS-5-30K |
| Wattage (W): | 10W |
| Voltage (V): | 120VAC |
| Colour temperatures: | 3000K / 4000K / 5000K |
| Rated Lumens (lm): | 600 lm / 680 lm / 620 lm |
| Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic – Low Glare |
| Dimmable: | Yes – TRIAC / ELV |
| CRI: | ≥ 80 |
| Energy Efficiency: | 60 lm/W |
| Base: | Hardwire – 4″ J-Box |
| Environmental Rating: | Wet Location |
| Safety Certification: | cETLus |
| Diameter: | 5-5/16″ / 135 mm |
| Height: | 5/8″ / 17 mm |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |
| IES Photometric Files: | 3000K 4000K 5000K |

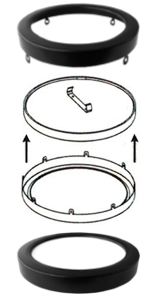

#1021 – DS-5 Black Trim
| Model No: | #1021 – DS-5-Black Trim |
| Colour: | Black |
| Carton Quantity: | 20 per Carton |
#1054 – DS-7-3CCT – 7″ LED Flush Mount Downlight
| Model No: | #1054 – DS-7-3CCT |
| Wattage (W): | 15W |
| Voltage (V): | 120VAC |
| Rated Lumens (lm): | 900 lm |
| Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic – Low Glare |
| Dimmable: | Yes – TRIAC / ELV |
| CRI: | ≥ 80 |
| Energy Efficiency: | 60 lm/W |
| Base: | Hardwire – 4″ J-Box |
| Environmental Rating: | Wet Location |
| Colour temperature: | 3000K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Diameter: | 7-7/8″ / 202 mm |
| Height: | 5/8″ / 17 mm |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |

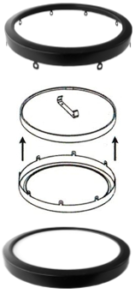

#1022 – DS-7 Black Trim
| Model No: | #1022 – DS-7-Black Trim |
| Colour: | Black |
| Carton Quantity: | 20 per Carton |

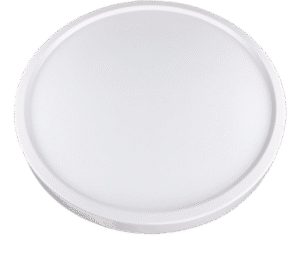

#1108 – DS-12-3CCT WH – 12″ LED Flush Mount Downlight (NEW)
| Model No: | #1108 – DS-12-3CCT WH |
| Wattage (W): | 24W |
| Voltage (V): | 120VAC |
| Colour Temperatures: | 3000K / 4000K / 5000K |
| Rated Lumens (lm): | 2800 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic – Low Glare |
| Dimmable: | Yes – TRIAC / ELV |
| CRI: | ≥ 80 |
| Energy Efficiency: | 116.7 lm/W |
| Base: | Hardwire – 4″ J-Box |
| Environmental Rating: | Samp Location |
| Safety Certification: | cETLus |
| Housing Material: | Die Cast |
| Dimensions: | 11-7/8″ D x 1″ H |
| Carton Quantity: | 10 per Carton |
| Warranty: | 5 Years |
| Photometric IES File: | IES File |
#1109 – DS-12-3CCT BK – 12″ LED Flush Mount Downlight (NEW)
| Model No: | #1109 – DS-12-3CCT BK |
| Wattage (W): | 24W |
| Voltage (V): | 120VAC |
| Colour Temperatures: | 3000K / 4000K / 5000K |
| Rated Lumens (lm): | 2800 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic – Low Glare |
| Dimmable: | Yes – TRIAC / ELV |
| CRI: | ≥ 80 |
| Energy Efficiency: | 116.7 lm/W |
| Base: | Hardwire – 4″ J-Box |
| Environmental Rating: | Samp Location |
| Safety Certification: | cETLus |
| Housing Material: | Die Cast |
| Dimensions: | 11-7/8″ D x 1″ H |
| Carton Quantity: | 10 per Carton |
| Warranty: | 5 Years |
| Photometric IES File: | IES File |
#1048 – DS-12 Black Trim
| Model No: | #1048 – DS-12-Black Trim |
| Colour: | Black |
| Carton Quantity: | 20 per Carton |

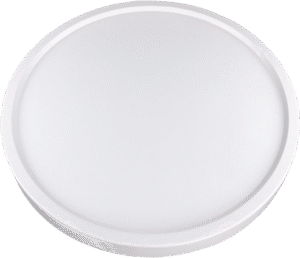

#1128 – DS-15-3CCT WH – 15″ LED Flush Mount Downlight
| Model No: | #1128 – DS-15-3CCT WH |
| Wattage (W): | 30W |
| Voltage (V): | 120VAC |
| Colour Temperatures: | 3000K / 4000K / 5000K |
| Rated Lumens (lm): | 4000 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic – Low Glare |
| Dimmable: | Yes – TRIAC / ELV |
| CRI: | ≥ 80 |
| Energy Efficiency: | 133 lm/W |
| Base: | Hardwire – 4″ J-Box |
| Environmental Rating: | Damp Location |
| Safety Certification: | cETLus |
| Housing Material: | Plastic |
| Dimensions: | 15″ D x 1″ H |
| Carton Quantity: | 10 per Carton |
| Warranty: | 5 Years |
| Photometric IES File: | IES File |
#1104 – DS-15-3CCT-D – 15″ LED Flush Mount Downlight
| Model No: | #1104 – DS-15-3CCT-D |
| Wattage (W): | 30W |
| Voltage (V): | 120VAC |
| Colour Temperatures: | 3000K / 4000K / 5000K |
| Rated Lumens (lm): | 2000 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic – Low Glare |
| Dimmable: | Yes – TRIAC / ELV |
| CRI: | ≥ 80 |
| Energy Efficiency: | 66.7 lm/W |
| Base: | Hardwire – 4″ J-Box |
| Environmental Rating: | Wet Location |
| Safety Certification: | cETLus |
| Housing Material: | Die Cast |
| Dimensions: | 15″ D x 1″ H |
| Carton Quantity: | 6 per Carton |
| Warranty: | 5 Years |
#952 – DSQ-4-30K – 4″ Square LED Flush Mount Downlight
#952 – DSQ-4-30K – 4″ Square LED Flush Mount Downlight| Model No: | #952 – DSQ-4-30K |
| Wattage (W): | 10W |
| Voltage (V): | 120VAC |
| Rated Lumens (lm): | 600 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic – Low Glare |
| Dimmable: | Yes – TRIAC / ELV |
| CRI: | ≥ 80 |
| Energy Efficiency: | 60 lm/W |
| Base: | Hardwire – 4″ J-BOX |
| Enrironmental Rating: | Wet Location |
| Colour temperature: | 3000K |
| Safety Certification: | cETLus |
| Energy Star: | Yes |
| Dimensions: | 4-3/8″D x 5/8″H |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |

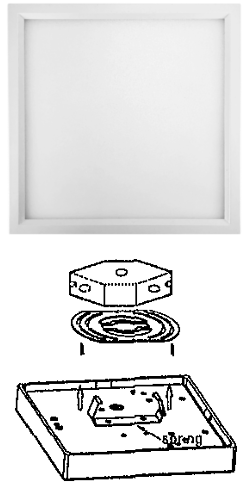

#953 – DSQ-6-30K – 6″ LED Flush Mount Downlight
| Model No: | #953 – DSQ-6-30K |
| Wattage (W): | 15W |
| Voltage (V): | 120VAC |
| Rated Lumens (lm): | 900 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic – Low Glare |
| Dimmable: | Yes – TRIAC / ELV |
| CRI: | ≥ 80 |
| Energy Efficiency: | 60 lm/W |
| Base: | Hardwire – 4″ J-Box |
| Environmental Rating: | Wet Location |
| Colour temperature: | 3000K |
| Safety Certification: | cETLus |
| Energy Star: | Yes |
| Dimensions: | 6-1/4″ D x 5/8″ H |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |
#978 – CL-6-PIR – 6″ PIR Sensor LED Closet Light
#978 – CL-6-PIR – 6″ PIR Sensor LED Closet Light| Model No: | #978 – CL-6-PIR |
| Wattage (W): | 10W |
| Voltage (V): | 120VAC |
| Lumens (lm): | 600 lm |
| Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic |
| CRI: | > 80 |
| Energy Efficiency: | 60 lm/W |
| Power Factor: | 0.81 |
| Dimensions: | 6-7/8″ x 1″ |
| Colour temperature: | 3000K |
| Safety Certification: | cETLus |
| PIR Sensor: | Yes |
| Auto Shut-off: | Yes – After 30 seconds |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |
#1055 – CL-8-PIR – 8″ PIR Sensor LED Closet Light
| Model No: | #1055- CL-8-PIR |
| Wattage (W): | 15W |
| Voltage (V): | 120VAC |
| Lumens (lm): | 900 lm |
| Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic |
| CRI: | > 80 |
| Energy Efficiency: | 60 lm/W |
| Power Factor: | 0.81 |
| Dimensions: | 8″ x 1″ |
| Colour temperature: | 3000K |
| Safety Certification: | cETLus |
| PIR Sensor: | Yes |
| Auto Shut-off: | Yes – After 30 seconds |
| Carton Quantity: | 20 per Carton |
| Warranty: | 5 Years |
#1016 – CL-11-3CCT – 11″ LED Flush Mount (Colour Selectable) – CLEARANCE
#1016 – CL-11-3CCT – 11″ LED Flush Mount (Colour Selectable) – CLEARANCE| Model No: | #1016 – CL-11-3CCT |
| Wattage (W): | 15W |
| Voltage (V): | 120VAC |
| Lumens (lm): | 1050 lm |
| Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 70 lm/W |
| Dimensions: | 11″ x 3″ |
| 3CCT Colour Temperature Selectable: | 3000K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Carton Quantity: | 8 per Carton |
| Warranty: | 5 Years |
| IES Photometric File: | IES File Link |
#1205 – CL-11-5CCT – 11″ LED Flush Mount (Colour Selectable) – NEW
#1205 – CL-11-5CCT – 11″ LED Flush Mount (Colour Selectable) – NEW| Model No: | #1205 – CL-11-5CCT |
| Wattage (W): | 15W |
| Voltage (V): | 120VAC |
| Lumens (lm): | 1100 lm |
| Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 73.3 lm/W |
| Dimensions: | 11″ x 3-1/4″ |
| 5CCT Colour Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Environmental Rating: | Damp Location |
| Operating Temperature: |
-25°C to 40°C |
| Carton Quantity: | 8 per Carton |
| Warranty: | 5 Years |

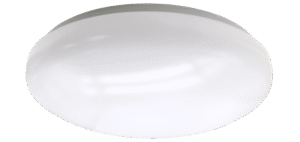

#1206 – CL-13-5CCT – 13″ LED Flush Mount (Colour Selectable) – NEW
#1206 – CL-13-5CCT – 13″ LED Flush Mount (Colour Selectable) – NEW| Model No: | #1206 – CL-13-5CCT |
| Wattage (W): | 20W |
| Voltage (V): | 120VAC |
| Lumens (lm): | 1600 lm |
| Rated Life (Hrs): | 50,000 Hrs |
| Finish: | White |
| Diffuser Type: | Acrylic |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 80 lm/W |
| Dimensions: | 13″ x 3-1/4″ |
| 5CCT Colour Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Environmental Rating: | Damp Location |
| Operating Temperature: |
-25°C to 40°C |
| Carton Quantity: | 6 per Carton |
| Warranty: | 5 Years |
#794 – CL-2R-12-3CCT – 12″ LED Flush Mount (Colour Selectable) – CLEARANCE
#794 – CL-2R-12-3CCT – 12″ LED Flush Mount (Colour Selectable) – CLEARANCE| Model No: | #794 – CL-2R-12-3CCT |
| Wattage (W): | 15W |
| Voltage (V): | 120VAC |
| Delivered Light Output: | 1100 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | Brushed Nickel |
| Diffuser Type: | Acrylic |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 70 lm/W |
| Power Factor: | 0.99 |
| Dimensions: | 12″ x 3″ |
| 3CCT Colour Temperature Selectable: | 3000K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Energy Star: | Yes |
| Carton Quantity: | 6 per Carton |
| Warranty: | 5 Years |
| IES Photometric File: | IES File Link |
#1204 – CL-2R-12-5CCT – 12″ LED Flush Mount (Colour Selectable) – NEW
| Model No: | #1204 – CL-2R-12-5CCT |
| Wattage (W): | 15W |
| Voltage (V): | 120VAC |
| Delivered Light Output: | 1100 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | Brushed Nickel |
| Diffuser Type: | Acrylic |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 73.3 lm/W |
| Power Factor: | 0.95 |
| Dimensions: | 12″ x 3-7/8″ |
| 5CCT Colour Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Environmental Rating: | Damp Location |
| Operating Temperature: | -25°C to 40°C |
| Carton Quantity: | 6 per Carton |
| Warranty: | 5 Years |
#1136 – CL-2R-12-5CCT BK – 12″ LED Flush Mount (Colour Selectable) – NEW
#1136 – CL-2R-12-5CCT BK – 12″ LED Flush Mount (Colour Selectable) – NEW| Model No: | #1136 – CL-2R-12-5CCT BK |
| Wattage (W): | 15W |
| Voltage (V): | 120VAC |
| Delivered Light Output: | 1100 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | Matte Black |
| Diffuser Type: | White Acrylic |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 73.3 lm/W |
| Power Factor: | 0.95 |
| Dimensions: | 12″ x 3-7/8″ |
| 5CCT Colour Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Operating Temperature: | -25°C to 40°C |
| Environmental Rating: | Damp Location |
| Carton Quantity: | 6 per Carton |
| Warranty: | 5 Years |
#1045 – CL-2R-16-5CCT – 16″ LED Flush Mount (Colour Selectable) – NEW
#1045 – CL-2R-16-5CCT – 16″ LED Flush Mount (Colour Selectable) – NEW| Model No: | #1045 – CL-2R-16-5CCT |
| Wattage (W): | 25W |
| Voltage (V): | 120VAC |
| Delivered Light Output: | 1900 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | Brushed Nickel |
| Diffuser Type: | Acrylic |
| Dimmable: | Yes |
| CRI: | 76 lm/W |
| Energy Efficiency: | 80.8 |
| Environmental Rating: | Damp Location |
| Dimensions: | 16″ x 3-7/8″ |
| 5CCT Colour Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Environmental Rating: | Damp Location |
| Operating Temperature: | -25°C to 40°C |
| Carton Quantity: | 5 per Carton |
| Warranty: | 5 Years |
# 1085 – CL-2R-16-5CCT BK – 16″ LED Flush Mount (Colour Selectable) – NEW
# 1085 – CL-2R-16-5CCT BK – 16″ LED Flush Mount (Colour Selectable) – NEW
| Model No: | #1085 – CL-2R-16-5CCT BK |
| Wattage (W): | 25W |
| Voltage (V): | 120VAC |
| Delivered Light Output: | 1900 lm |
| L70 Rated Life (Hrs): | 50,000 Hrs |
| Finish: | Matte Black |
| Diffuser Type: | White Acrylic |
| Dimmable: | Yes |
| CRI: | 80 |
| Energy Efficiency: | 76 lm/W |
| Power Factor: | 0.95 |
| Dimensions: | 16″ x 3-7/8″ |
| 5CCT Colour Temperature Selectable: | 2700K / 3000K / 3500K / 4000K / 5000K |
| Safety Certification: | cETLus |
| Environmental Rating: | Damp Location |
| Operating Temperature: | -25°C to 40°C |
| Carton Quantity: | 5 per Carton |
| Warranty: | 5 Years |
